What Is an SDNR Valve? Marine Applications, JIS Standards & Singapore Availability
If you've spent time in a ship's engine room or worked a shipyard procurement list, you've likely seen "SDNR" stamped on a valve body without necessarily knowing what sets it apart from an ordinary check valve. For buyers searching for an SDNR valve in Singapore, the short answer is that it's a dual-function valve — part manual stop valve, part automatic non-return valve — and it shows up in some of the most safety-critical piping on a vessel. Aik Soon Hardware has supplied JIS-rated SDNR valves to shipyards, ship owners, and engineering firms across Singapore since 1982, and this guide covers what the valve does, where it belongs, and what to check before you specify one.
What Is an SDNR Valve?
SDNR stands for Screw-Down Non-Return. As the name suggests, the valve combines two functions in a single body: it can be manually screwed shut like a globe valve, and it automatically prevents backflow like a check valve. In the industry this dual-function design is also referred to as a "stop-check valve."

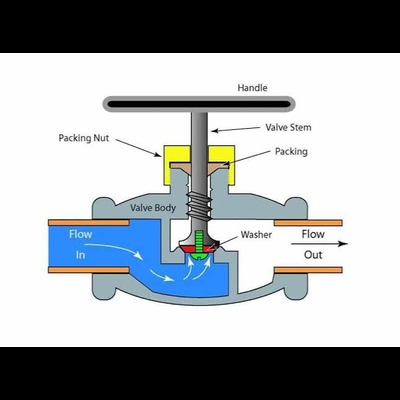

How the Screw-Down Mechanism Works
A handwheel-operated stem lets an operator manually force the valve fully closed, exactly as you would with a conventional globe or stop valve. This is the "screw-down" half of the name, and it's what makes an SDNR valve suitable for isolation duty — not just backflow prevention.
How the Non-Return Function Works
Inside the body sits a disc that isn't rigidly fixed to the stem. Under normal forward flow, differential pressure lifts the disc off its seat and fluid passes through freely. The moment flow tries to reverse, gravity — often assisted by a spring — drives the disc back onto the seat immediately, stopping backflow automatically without the operator needing to react. The screw-down stem can then be wound down further to force a bubble-tight manual shutoff when required, such as during maintenance or an emergency.
Where SDNR Valves Are Used On Board Ships
Typical Shipboard Systems
Common locations include boiler feed lines, steam headers, bilge and ballast systems, sea chest and seawater cooling lines, compressed air and inert gas systems, and fuel oil transfer lines. In each case, the valve serves the same purpose: let flow move one way under normal operation, and shut it down hard — either automatically on reversal, or manually via the handwheel — the moment something goes wrong.
Why Classification Societies Specify Them
Class societies such as DNV, Lloyd's Register, ABS, and ClassNK call for SDNR (or equivalent stop-check) valves at specific points in a vessel's piping — particularly sea connections and boiler feed lines — because a single automatic check valve isn't considered sufficient on its own for isolation during maintenance or an emergency. Having both functions in one valve body also saves space and weight compared to a separate stop valve and check valve in series.
JIS Standards and Pressure Ratings for SDNR Valves
Common JIS Pressure Ratings
SDNR globe and angle valves are typically available in 5K and 10K pressure classes, corresponding to JIS figure numbers in the F7350–F7380 range for cast iron and bronze bodies (e.g. JIS F7353 for 5K cast iron globe SDNR valves, JIS F7375 for the 10K equivalent). Sizing runs from small-bore gauge lines up to larger bore main seawater and steam systems.
Bronze vs Cast Iron SDNR Valves
Bronze SDNR valves are standard for seawater and general marine service up to moderate pressures. Cast iron bodies are more common on higher-pressure steam and boiler feed applications where bronze isn't suitable — see our earlier article on bronze vs cast iron valves for the full selection criteria.
Sourcing SDNR Valves in Singapore
Despite being a standard fitting on JIS-built and JIS-classed vessels, SDNR valves are surprisingly hard to source quickly in Singapore — several local stockists carry the line but publish little technical information, making it hard to confirm spec or lead time before ordering. For a ship repair team working against a dry-dock schedule, a missing SDNR valve can hold up a system reinstatement, and ordering direct from an overseas mill typically means weeks of lead time.
Aik Soon Hardware has supplied JIS-rated valves to shipyards and ship owners across Singapore for over 40 years — including teams at the Seatrium yards in Tuas, Benoi, and Gul, plus FPSO operators and refinery maintenance teams. Looking for SDNR valves in Singapore? Contact Aik Soon Hardware — we carry JIS-rated stock and can turn around quotes quickly.
FAQs
What does SDNR stand for? Screw-Down Non-Return — a valve combining manual screw-down shutoff with an automatic non-return (check) function in one body.
What's the difference between an SDNR valve and a standard check valve? A standard check valve only prevents backflow automatically. An SDNR valve does that and can be manually screwed shut for complete isolation.
What JIS pressure ratings are SDNR valves available in? Commonly 5K and 10K, in bronze or cast iron depending on application and system pressure.
Are SDNR valves required by classification societies? Yes — DNV, LR, ABS and ClassNK typically require stop-check valves at points like sea connections and boiler feed lines.
Does Aik Soon Hardware stock SDNR valves in Singapore? Yes — contact us to confirm current stock, sizes, and lead times.
