Understanding Valve Trims: The Key to Efficient and Reliable Valve Performance

When it comes to industrial and marine systems, valves are the silent sentinels controlling the flow of liquids, gases, and steam. Yet, within each valve lies a crucial component often overlooked: the valve trim. At Aik Soon Hardware Pte Ltd, Singapore’s trusted marine and industrial valve stockist and distributor, we know that selecting the right valve trim is just as important as choosing the valve itself.

Valve trims are directly exposed to the process fluid, dictating how well the valve withstands pressure, temperature, corrosion, and erosion. Selecting the appropriate trim ensures optimal valve performance, safety, and long-term cost savings for your operations.

In this article, we’ll explore:

  • What valve trims are

  • Why choosing the right trim is essential

  • How to select a trim suitable for your specific needs

  • Common types of trim materials and their applications


What is Valve Trim?

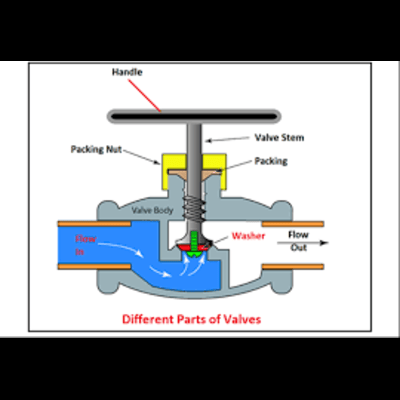

Valve trim refers to the internal parts of a valve that come into direct contact with the process fluid and contribute to controlling the flow. These typically include:

  • Valve disc or plug – The part that opens, closes, or throttles the flow.

  • Seat rings – Where the disc or plug seals to prevent leakage.

  • Stem – Connects the actuator or handwheel to the disc/plug.

  • Backseat bushings

  • Cages or guides – In control valves, help stabilise flow.

  • Seals or packing rings

Essentially, the trim defines the valve’s functionality, sealing capability, and durability in specific service conditions.


Why Choosing the Right Valve Trim is Important

Valves often operate under harsh conditions—high pressures, extreme temperatures, corrosive chemicals, or abrasive slurries. Choosing the correct valve trim is vital because:

  • Prevents corrosion and erosion: The wrong material can corrode or erode quickly, leading to leaks or valve failure.

  • Ensures proper sealing: A mismatched trim may not seal properly, compromising system integrity.

  • Prolongs valve lifespan: Correct trim selection reduces wear and maintenance costs.

  • Optimises process performance: Trim materials affect flow characteristics and control precision.

Improper trim selection can result in unexpected downtime, safety hazards, and costly repairs, especially in critical marine or industrial processes.


How to Select the Right Valve Trim

When choosing a valve trim, consider the following factors:

1. Process Fluid Characteristics

  • Is the fluid corrosive (e.g. acids, seawater)?

  • Does it contain abrasive particles?

  • Is it a gas, liquid, or slurry?

  • Is it toxic or hazardous?

For example, seawater applications require highly corrosion-resistant trims such as duplex stainless steel or high-nickel alloys.


2. Operating Temperature and Pressure

Higher temperatures and pressures demand stronger, heat-resistant materials. Soft materials may deform under such conditions, causing leakage.


3. Erosion and Wear

High-velocity fluids or suspended solids can erode trim surfaces. Hard-faced or stellite-coated trims are often used in such scenarios.


4. Desired Flow Characteristics

Some processes need precise control over flow rates. Special trims like cages or contoured plugs help reduce noise, vibration, and cavitation in control valves.


5. Cost vs. Performance

Exotic alloys offer excellent performance but come at a higher cost. It’s essential to balance material performance with your budget.


Common Valve Trim Materials and Their Uses

Here’s a closer look at materials commonly used for valve trims in marine and industrial applications:

Stainless Steel (e.g. SS 304, SS 316)

  • Excellent corrosion resistance

  • Suitable for mildly corrosive fluids

  • Widely used in marine and general industrial services


Duplex Stainless Steel

  • Higher resistance to pitting and stress corrosion cracking

  • Ideal for seawater and offshore applications


Monel

  • High nickel content, excellent corrosion resistance

  • Suitable for seawater, brine, and non-oxidizing acids


Hastelloy

  • Excellent performance against strong acids and high-temperature corrosion

  • Used in highly corrosive chemical environments


Stellite or Hard Facing Alloys

  • Extremely hard, wear-resistant surfaces

  • Used for high-erosion or high-temperature service


Bronze and Brass

  • Good resistance to seawater

  • Often used in marine applications for lower-pressure systems


Alloy Steels

  • Suitable for high-pressure and high-temperature services

  • Less corrosion-resistant but strong and economical for certain applications


Trim Number Standardisation (API Trim Numbers)

In the oil & gas and marine industries, valve trims are often specified using API trim numbers (per API 600 and API 602 standards). Each trim number corresponds to a combination of materials for seat, disc, stem, and other wetted parts. For instance:

  • Trim No. 8: All stainless steel

  • Trim No. 5: Monel

  • Trim No. 12: 316 stainless steel with hard-faced seating surfaces

Specifying trim numbers ensures consistency and ease of replacement across systems.


Valve Trim Selection at Aik Soon Hardware Pte Ltd

At Aik Soon Hardware Pte Ltd, we stock and distribute a comprehensive range of valves suitable for diverse marine and industrial applications. Our expertise enables us to advise customers on the ideal valve trims based on:

  • Service medium

  • Pressure and temperature ratings

  • Regulatory requirements

  • Industry-specific standards

We work closely with leading global manufacturers to ensure the trims we supply deliver longevity, reliability, and safety in even the harshest environments.


Conclusion

Valve trims may be hidden inside your valve, but they play a vital role in determining performance, durability, and safety. Choosing the right trim material is essential for protecting your systems from corrosion, erosion, and premature failure—especially in demanding marine and industrial conditions.

At Aik Soon Hardware Pte Ltd, we’re committed to helping our clients in Singapore and the region make the right valve and trim selections. Whether you’re handling seawater, chemicals, steam, or slurries, we have the expertise and inventory to support your needs.

Contact us today to discuss your valve requirements and ensure your systems run safely and efficiently.
