If you have ever compared two seemingly identical valves and found one stamped "JIS 10K" and the other "JIS 16K", you already know the JIS valve pressure rating is not a cosmetic detail — it determines whether that valve is safe, compliant, and fit for the system it is being fitted into. For procurement teams and marine engineers working across Singapore's shipyards and process plants, understanding what each JIS pressure class actually represents is the difference between a straightforward order and a costly rework.

What Does the JIS Pressure Rating ("K" Number) Actually Mean?

JIS — the Japanese Industrial Standard — rates valves and flanges using a "K" number that originates from kgf/cm² (kilogram-force per square centimetre), the nominal pressure class the fitting is designed around. A valve marked 10K is built to the JIS B2239 (bronze and cast iron valves) or JIS B2213 (cast steel valves) pressure-temperature schedule for the 10K class, in the same way an ANSI valve is built to a Class 150 or Class 300 schedule, or a European valve to a PN rating.

The K number is a nominal design class, not a literal ceiling you can apply at any temperature. Every JIS standard publishes a pressure-temperature de-rating table: the valve's actual allowable working pressure drops as operating temperature rises. A 10K bronze valve rated near 1.0 MPa in cold water will carry a lower allowable pressure once the medium is hot condensate or steam. This is precisely why the JIS valve pressure rating on the body must always be checked against the full B2239/B2213/B2210 tables for the actual operating temperature of your system, not just the cold-water headline figure.

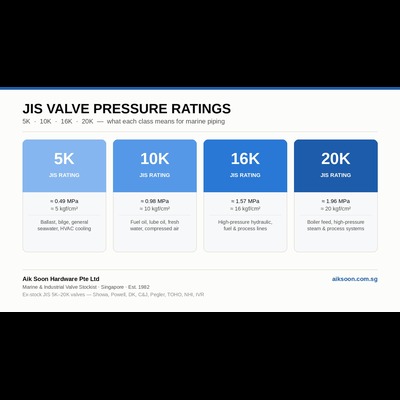

Indicative Cold-Water Pressure by JIS Class

Figures are indicative nominal ratings for reference only. Always confirm exact allowable working pressure at your operating temperature against the full JIS pressure-temperature tables, or ask Aik Soon Hardware to confirm the certified rating for the specific valve and material grade you are specifying.

JIS 5K Valves — Applications and Limitations

JIS 5K is the lightest common marine pressure class, typically found in cast iron and bronze-bodied valves. It is specified for low-pressure, non-critical services such as ballast systems, bilge lines, general seawater cooling, and HVAC chilled-water circuits. A 5K valve is an economical choice where the system design pressure is genuinely low — but it should never be substituted into a higher-pressure line simply because it looks the same size as a 10K equivalent. Wall thickness, flange bolting pattern, and internal component tolerances differ between classes even at the same nominal bore.

JIS 10K Valves — the Workhorse Rating for Marine Systems

JIS 10K is the most widely specified JIS valve pressure rating on general marine and industrial piping. It covers fuel oil transfer, lubricating oil systems, fresh water cooling, compressed air, and a large share of general shipboard service lines. Most of the bronze and cast iron gate, globe, check, and butterfly valves moving through Singapore's ship repair yards fall into this class, which is why Aik Soon Hardware carries 10K as the deepest stock line across our represented brands — Showa, Powell, DK Valve, C&J, Pegler, TOHO, NHI, and IVR.

JIS 16K and 20K Valves — High-Pressure and Steam Applications

When 16K Is Specified

JIS 16K steps up to higher-pressure hydraulic systems, some high-pressure fuel and process lines, and applications where the 10K class's de-rated allowable pressure at operating temperature falls short of the system's design margin. 16K valves are typically cast steel or higher-grade bronze, with heavier body sections to match the higher design pressure.

When 20K Is Required

JIS 20K is reserved for the most demanding services on board and in process plants: boiler feedwater, high-pressure steam, and high-pressure hydraulic or process piping where both pressure and temperature are elevated simultaneously. Because the pressure-temperature de-rating curve is steepest at this class, 20K valves are specified with the least tolerance for substitution — the correct material grade and class combination matters more here than at any other rating.

How to Choose the Right JIS Pressure Rating for Your Project

Selecting the correct class comes down to four checks: system design pressure — the maximum pressure the line is designed to see, including surge and test pressure, not just normal operating pressure; operating temperature — because allowable pressure de-rates with temperature, always check the class against the hottest expected operating condition, not ambient; media compatibility — steam, fuel, and seawater place different demands on seat and body material even within the same pressure class; and classification society requirements — DNV, Lloyd's Register, ABS, and ClassNK may specify minimum class or material requirements for certain systems regardless of calculated design pressure.

When in doubt, it is far cheaper to confirm the class and certification with your valve stockist before ordering than to discover a mismatch during vessel commissioning or class survey.

Why This Matters for Procurement Teams in Singapore

Singapore's ship repair and shipbuilding activity — concentrated around the Seatrium yards at Tuas, Benoi, and Gul, alongside offshore and refinery maintenance work islandwide — runs on tight turnaround windows. A valve delivered in the wrong JIS pressure class is not a minor inconvenience; it typically means a failed inspection, a delayed sailing, or an expensive expedited replacement order. Getting the JIS valve pressure rating right at the ordering stage protects the schedule as much as it protects the system.

Aik Soon Hardware has stocked JIS-rated marine valves in Singapore since 1982, and we carry 5K, 10K, 16K, and 20K classes ex-stock across our represented brands, in bronze and cast iron construction, with class certification available on request. If your team needs a same-day pressure-class confirmation or a quote against a specific JIS figure number, our team can turn that around quickly.

Looking for JIS-rated valves in the correct pressure class for your next project? Contact Aik Soon Hardware — we carry ready stock across 5K to 20K classes and can confirm certification and turn around a quote quickly.

FAQ block (paste verbatim for schema markup):

What does JIS 10K mean on a valve?
JIS 10K means the valve is built to the 10 kgf/cm² nominal pressure class defined in the relevant JIS standard (B2239 for bronze/cast iron, B2213 for cast steel). It is a design class, and the actual allowable working pressure depends on operating temperature per the standard's pressure-temperature table.

Is JIS 10K the same as PN16?
They are close but not identical. JIS 10K and PN16 both sit in a similar mid-pressure band, but flange dimensions, bolt patterns, and exact allowable pressure-temperature curves differ between the JIS and European (EN/PN) standards. Always match flanges and valves within the same standard rather than assuming a direct swap.

Can I substitute a JIS 5K valve where 10K is specified?
No. Even at the same nominal bore, a 5K valve has a lighter body, different flange dimensions, and a lower allowable pressure than a 10K valve. Substituting a lower class is a safety and compliance risk and will typically fail class survey.

Does temperature affect the JIS pressure rating?
Yes. Every JIS class carries a pressure-temperature de-rating table — allowable working pressure decreases as operating temperature increases. The cold-water figure often quoted for a class is the ceiling, not the rating at your actual operating temperature.

Which JIS rating is most common for ship piping systems?
JIS 10K is the most commonly specified class for general marine service — fuel oil, lube oil, fresh water, and compressed air lines. 5K covers lower-pressure services like ballast and bilge, while 16K and 20K are reserved for higher-pressure hydraulic, steam, and boiler feed applications.
