In the world of fluid control, selecting the right type of valve is critical to ensure operational efficiency, safety, and cost-effectiveness. For professionals in marine and industrial sectors, globe valves and gate valves are two of the most commonly used valve types. While both serve as flow control devices, their internal mechanisms, performance characteristics, and ideal applications vary significantly. As a leading valve distributor in Singapore, Aik Soon Hardware is here to help you understand the essential differences between globe valves and gate valves — and how to choose the right one for your specific needs.

What is a Globe Valve?

A globe valve is a linear motion valve primarily designed to start, stop, and regulate flow. It consists of a movable plug (disc) and a stationary ring seat in a generally spherical body, hence the name “globe.”

Design Features:

• Disc movement: Perpendicular to the seat.

• Flow pattern: Typically S-shaped, creating higher resistance.

• Body shape: Usually globe-shaped, with internal baffles.

• Tight sealing: Offers superior shut-off capabilities.

What is a Gate Valve?

A gate valve is a linear motion valve that uses a wedge-shaped gate or blade that moves up and down to open or close the flow. It is designed primarily for on/off control rather than flow regulation.

Design Features:

• Disc movement: Parallel to the flow.

• Flow pattern: Straight-through, resulting in minimal pressure drop.

• Body shape: More compact and streamlined than globe valves.

• Open/close speed: Slower compared to other valves.

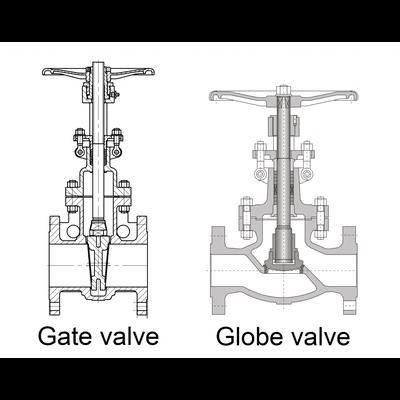

Globe Valve vs Gate Valve: Key Differences

When to Use a Globe Valve

Ideal Applications:

• Systems requiring frequent flow regulation or throttling.

• High-pressure environments where tight shutoff is critical.

• Cooling water systems where flow needs to be modulated.

• Fuel oil and feedwater systems on ships and industrial plants.

Globe valves are the preferred option when precise control over flow rate is necessary. They're often found in marine piping systems, chemical processing plants, and HVAC systems.

When to Use a Gate Valve

Ideal Applications:

• Applications requiring full open or full close positions.

• Low-pressure systems where minimal flow resistance is desired.

• Water, gas, and oil pipelines in marine or industrial infrastructure.

• Systems where the valve remains open for long periods.

Gate valves are most suitable for on-off service in large pipelines and are widely used in shipbuilding, water treatment, and bulk fluid transfer systems.

Factors to Consider When Choosing Between Globe and Gate Valves

1. Purpose of the Valve: For throttling or regulating? Choose globe. For on/off? Choose gate.

2. System Pressure and Flow Characteristics: Higher pressure or need for tight shutoff? Opt for a globe valve.

3. Installation Space: Gate valves typically require less space when fully open.

4. Cost vs Performance: Gate valves are cheaper but offer less precise control.

5. Maintenance Requirements: Globe valves are easier to service and inspect in-line.

Conclusion

Choosing between a globe valve and a gate valve boils down to understanding your system’s requirements. For regulation and control, globe valves are unmatched. For basic shut-off functions in large-diameter pipelines, gate valves are the economical choice.
