Bronze vs Cast Iron Valves — Which to Choose for Marine Applications

When specifying marine valves for a vessel repair, newbuild project, or industrial installation in Singapore, one of the most fundamental material decisions is bronze versus cast iron. Both are widely stocked across the JIS and DIN valve range — but they are not interchangeable. Choosing the wrong material for the application can mean premature corrosion, failed class surveys, or a valve that simply cannot do the job. This guide explains the key differences between bronze and cast iron marine valves, where each material is correctly specified, and what procurement teams need to know when sourcing through a Singapore valve stockist.

What Is Bronze and What Is Cast Iron — and Why Does It Matter for Valves?

Bronze Marine Valves

Bronze is a copper-based alloy — typically copper, tin, and zinc in varying proportions depending on the grade. For marine valve applications, the most common grades are gunmetal (BS 1400 LG2) and admiralty bronze, both of which offer excellent corrosion resistance in sea water service.

The key properties of bronze that make it the preferred material for marine valve applications:

• Corrosion resistance in sea water: Bronze resists the electrochemical corrosion that destroys ferrous metals in continuous sea water exposure. This is why virtually every sea water system on a vessel specifies bronze valves.
• Dezincification resistance: Higher-quality marine bronze grades are formulated to resist dezincification — the selective leaching of zinc that weakens the alloy in aggressive salt water environments. Look for dezincification-resistant (DR) bronze where this is a risk.
• Compatibility with marine classification standards: JIS F3034 (globe valves), JIS F3063 (gate valves), and the associated DIN PN equivalents all have bronze material specifications that are well-recognised by classification societies.

Cast Iron Marine Valves

Cast iron is a ferrous (iron-based) alloy with high carbon content. It is significantly cheaper than bronze, offers good compressive strength, and is appropriate for a wide range of non-corrosive service conditions on board vessels and in industrial plants.

Key properties relevant to valve specification:

• Cost: Cast iron valves are considerably less expensive than bronze — often 30–50% lower in material cost for equivalent sizes and pressure ratings. On projects where large-bore valves are required in non-corrosive service, this is a material cost saving.
• Pressure and temperature range: Cast iron valves are suitable across the JIS 5K to 16K range and DIN PN10/PN16 for standard service. They are not suitable for cryogenic or high-impact low-temperature service without specific material testing.
• Not suitable for sea water: Cast iron corrodes rapidly in sea water service. It is never specified for sea water pipework on vessels. This is the single most important rule in marine valve material selection.

Where Bronze Is Specified: Marine and Industrial Applications

Sea Water Systems

This is non-negotiable. Any valve in continuous contact with sea water — sea water cooling inlet valves, sea chests, overboard discharge, ballast line valves, sea water strainer bodies — must be bronze. Cast iron will corrode rapidly in this service and is not accepted by classification societies for sea water pipework.

Typical systems:

• Main sea water cooling circuits
• Auxiliary sea water cooling
• Sea chest valves and sea chest strainers
• Ballast line valves (for bronze-specified systems)

In Singapore's ship repair environment — particularly at Seatrium's yards at Tuas, Benoi, and Gul — bronze sea water valve replacements are among the most frequently requested items during dry dock, driven by scheduled maintenance and survey requirements.

Fuel Oil and Lubricating Oil Service

Bronze is preferred for fuel oil and lubricating oil service on vessels, particularly at smaller bore sizes (up to 80mm). The corrosion resistance and reliability of bronze in light hydrocarbon service is well established. For fuel oil service at larger bore sizes, cast iron or ductile iron may be acceptable depending on the classification society requirements and the specific installation.

Fresh Water Cooling (Smaller Bore)

For small-bore fresh water cooling lines (typically under 50mm), bronze is commonly specified because of its reliability and the wide stock availability across Singapore valve stockists. At larger bore sizes, cast iron becomes more competitive on cost without significant performance trade-off.

Classification Society Requirements

Most classification societies — DNV, Lloyd's Register, ABS, ClassNK, Bureau Veritas — specify bronze as the minimum material standard for sea water valves. If you are specifying valves for a classed vessel and have any doubt about whether bronze is required, check the class notation and ship specification. Substituting cast iron for bronze in a sea water service to reduce cost is a common source of survey failures.

Where Cast Iron Is Specified: Appropriate Applications on Vessels and in Plants

Fresh Water Systems (Larger Bore)

Cast iron gate valves and butterfly valves are widely used on larger-bore fresh water cooling systems — typically 80mm and above — where the cost saving is significant and the absence of sea water contact means corrosion is not a risk. Engine room fresh water cooling header valves, central cooling system isolations, and HVAC chilled water systems routinely use cast iron.

Fuel Oil Systems (Larger Bore)

Cast iron valves are used on larger-bore fuel oil transfer lines, fuel oil settling and service tank connections, and heavy fuel oil (HFO) heating systems — where the elevated operating temperature (up to 150°C for HFO service) and the non-corrosive nature of the media make cast iron a cost-effective and class-acceptable choice.

Fire Main and General Service Lines

For fire main systems and general service fresh water lines at larger sizes, cast iron gate valves and butterfly valves are commonly used. The key qualification is that the system does not carry sea water — fire main water on many vessels is drawn from a fresh water or combined system that does not expose valves to raw sea water indefinitely.

Industrial and Onshore Plant Applications

In industrial plant environments — refineries, chemical plants, power stations — cast iron valves are widely used on cooling water systems, condensate return lines, and non-aggressive service pipework. Their lower cost makes them the default choice wherever sea water corrosion or aggressive chemical attack is not a factor.

JIS and DIN Ratings: Does Material Affect Pressure Rating?

Both bronze and cast iron valves are manufactured across the full JIS pressure rating range (5K, 10K, 16K, 20K) and DIN PN range (PN10, PN16, PN25, PN40). The pressure rating refers to the design working pressure the valve is rated for, not the material itself.

However, at higher pressure ratings — JIS 16K, 20K and DIN PN25, PN40 — bronze is more commonly specified because of the corrosive conditions often associated with high-pressure steam, high-pressure fuel, and offshore process service. Cast iron has lower tensile strength than bronze or ductile iron and is not recommended for applications subject to thermal or mechanical shock.

For standard JIS 5K and 10K applications — which represent the majority of marine valve purchases — both bronze and cast iron are available, and the correct choice comes down entirely to the media and service conditions.

The Practical Rule for Marine Valve Material Selection

If you are unsure which material to specify and do not have access to the ship's specification, use this simplified rule as a starting point:

This is a guide for general marine valve selection. The ship's specification, the class notation, and the flag state requirements are always the definitive authority.

Sourcing Bronze and Cast Iron Valves Through Aik Soon Hardware

Aik Soon Hardware Pte Ltd is a Singapore marine and industrial valve stockist established in 1982. We hold ready stock of both bronze and cast iron valves across JIS 5K, 10K, and 16K ratings, and DIN PN10/PN16, in gate, globe, butterfly, and check configurations — from brands including Showa (Japan), DK Valve (Korea), and C&J Korea.

Bronze stock held ex-Singapore:

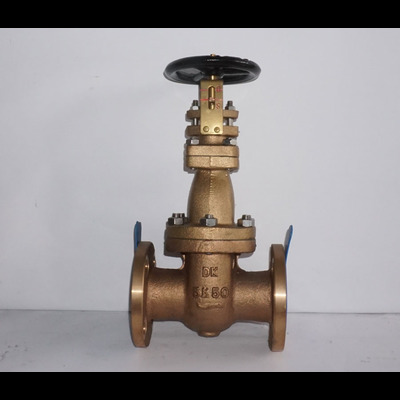

• Showa bronze gate valves — JIS 5K and 10K, sizes 15mm to 200mm
• Showa bronze globe valves — JIS 5K and 10K, sizes 15mm to 150mm
• DK Valve bronze gate and globe valves — JIS 10K, sizes 15mm to 150mm
• C&J Korea bronze gate, globe, and check valves — JIS 10K and 16K, sizes 15mm to 100mm
• Bronze Y-strainers — JIS 5K and 10K, sizes 15mm to 150mm

Cast iron stock held ex-Singapore:

• Showa cast iron gate valves — JIS 5K and 10K, sizes 40mm to 250mm
• Cast iron butterfly valves — JIS 5K and 10K, wafer and lug type, sizes 50mm to 300mm
• Cast iron globe valves — JIS 5K and 10K, sizes 40mm to 200mm
• DIN PN10/PN16 cast iron gate and butterfly valves, sizes 50mm to 250mm

Stocked bronze valves from Showa carry class approvals from DNV, Lloyd's Register, ABS, ClassNK, and Bureau Veritas — with mill certificates and class-specific documentation available on request. DK Valve and C&J Korea bronze ranges carry DNV and LR approvals.

Procurement teams at Seatrium's Tuas, Benoi, and Gul yards are among our regular customers for both bronze sea water service valves and cast iron engine room fittings. For ship repair scenarios where a vessel is in dry dock on a tight schedule, ex-stock availability at these ratings and sizes means same-day or next-day turnaround for most standard items. Contact us directly to confirm stock for your specific requirement.

Frequently Asked Questions

Q: Can cast iron valves be used for sea water service on marine vessels? A: No. Cast iron corrodes rapidly in sea water and is not accepted by classification societies for sea water pipework. Bronze valves must be used for any system in continuous contact with sea water — sea water cooling, sea chest valves, ballast line valves, and overboard discharge.

Q: Are bronze marine valves available in JIS 10K and 16K ratings in Singapore? A: Yes. Bronze JIS 10K and 16K gate valves, globe valves, and check valves are standard stock items at Aik Soon Hardware Pte Ltd, available in sizes from 15mm to 200mm across common configurations.

Q: What is the cost difference between bronze and cast iron valves? A: Cast iron valves are typically 30–50% lower in material cost than equivalent bronze valves. The cost saving is most significant at larger bore sizes (80mm and above). However, cast iron must never be substituted for bronze in sea water or other corrosive media service — the cost saving is irrelevant if the valve fails class survey or corrodes prematurely.

Q: Is ductile iron the same as cast iron for valve selection purposes? A: No — ductile iron (also called spheroidal graphite iron) has higher tensile strength and impact resistance than grey cast iron. Ductile iron is sometimes specified where standard cast iron is insufficient — for example, in high-pressure or low-temperature applications. It is still a ferrous material and is not suitable for sea water service without protective coating or lining.

Q: What valve material does DNV-GL specify for sea water lines? A: Classification societies including DNV, Lloyd's Register, ABS, ClassNK, and Bureau Veritas generally require non-ferrous material (bronze or gunmetal) for valves in continuous sea water service. The specific requirements are set out in each society's Rules for Classification. Aik Soon stocks Showa bronze valves with DNV, LR, ABS, ClassNK, and BV approvals — mill certificates and class documentation are available on request.
