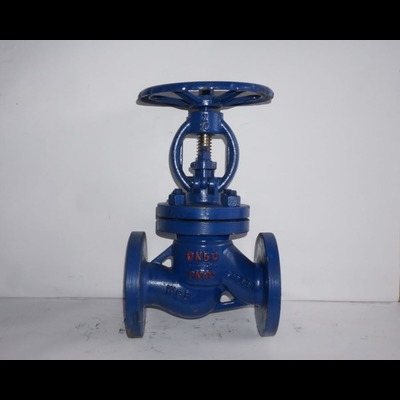

Introduction: The Importance of DIN Flanges in Marine and Industrial Systems

In any piping system — whether onboard a vessel or within an industrial plant — flanges play a critical role in connecting pipes, valves, and equipment safely and efficiently. To ensure reliability, every flange must comply with recognized engineering standards that define their dimensions, pressure ratings, materials, and tolerances.

While JIS (Japanese) and ANSI (American) flanges are common across Asia and the Americas respectively, DIN (Deutsches Institut für Normung) flanges — also referred to as EN (European Norm) flanges — are the dominant standard across Europe and many global industrial projects.

As a leading Singapore-based stockist and distributor of marine and industrial valves and flanges, Aik Soon Hardware Pte Ltd supplies a wide range of DIN-compliant flanges to support the shipbuilding, oil & gas, petrochemical, and process industries. This article provides an in-depth look into DIN flange standards, their common types, key differences, and how to select the right one for your project needs.

What Are DIN Flanges?

DIN flanges are standardized by the German Institute for Standardization (DIN) and widely adopted under EN 1092-1 in Europe. These standards define how flanges are dimensioned, tested, and classified by pressure and temperature capabilities.

They are known for precise dimensional tolerances and robust engineering quality, making them suitable for high-pressure and high-temperature systems in sectors such as:

• Shipbuilding and marine engineering – seawater cooling lines, ballast systems, bilge, and fire lines

• Oil & gas and petrochemical – high-pressure pipelines and refinery systems

• Industrial manufacturing – process plants, HVAC, and chemical distribution lines

Common DIN Flange Standards

The most widely used DIN (and EN) flange standards include:

1. DIN EN 1092-1 – Steel Flanges

• The most common DIN flange standard, covering carbon steel, stainless steel, and alloy steel flanges.

• Defines dimensions for pressure ratings from PN 2.5 up to PN 400.

• Equivalent to ASME B16.5 in scope, though the designations differ (PN vs. Class).

2. DIN 2501 – Flanges for Pipes, Valves, and Fittings

• A historical standard that has largely been replaced by EN 1092-1, but still referenced in legacy systems.

3. DIN 2527 – Blind Flanges

• Specifies dimensions for blank (blind) flanges, used to close pipe ends or isolate sections for maintenance.

4. DIN 2565 to DIN 2569 – Welding Neck Flanges

• Defines welding neck flanges for different pressure ratings (PN 6 to PN 40).

• Common in systems where high strength and minimal leakage are required.

5. DIN 2631 to DIN 2638 – Weld Neck Flanges for Various Pressure Ratings

• Specifies weld neck flanges from PN 6 up to PN 64, often used in process or industrial pipelines.

Differences Between DIN and Other Flange Standards (ANSI / JIS)

Understanding how DIN flanges differ from ANSI or JIS standards is crucial for proper system design and compatibility:

For example, a DN100 PN16 DIN flange cannot be directly connected to an ANSI 4-inch Class 150 flange, even though their bore diameters may seem close — the bolt hole pattern and PCD (Pitch Circle Diameter) differ.

How to Choose the Right DIN Flange Standard for Your Piping System

Selecting the correct DIN flange standard requires a systematic approach:

1. Confirm the Design Code and Regional Requirement

Ensure your piping system is built to European standards before choosing DIN flanges. For vessels or plants built to JIS or ANSI standards, matching flange types is critical to prevent misalignment or sealing issues.

2. Match Pressure Rating (PN Rating)

• PN (Pressure Nominal) indicates the maximum pressure in bar at 20°C.

• Common ratings: PN10, PN16, PN25, PN40, PN64, PN100.

• Example: PN16 flanges are used for general marine and industrial pipelines, while PN40+ are for high-pressure or high-temperature lines.

3. Select the Correct Flange Type

DIN flanges come in several types, each suited to different needs:

• Welding neck flange (DIN 2632–2638) – high-pressure or critical service.

• Slip-on flange (DIN 2576) – easier installation for low-pressure systems.

• Blind flange (DIN 2527) – sealing off pipeline ends.

• Threaded flange (DIN 2565) – used when welding is not feasible.

4. Consider Material Compatibility

Choose materials based on fluid type, temperature, and corrosion resistance:

• Carbon steel – general-purpose water and oil lines.

• Stainless steel (SS304, SS316) – seawater, chemical, or corrosive services.

• Duplex / Super Duplex – high-corrosion resistance applications like offshore systems.

5. Partner with a Reliable Supplier

Working with a trusted distributor such as Aik Soon Hardware Pte Ltd ensures:

• Accurate material certification (EN 10204 3.1)

• Stock availability in DIN standard flanges and compatible valves

• Technical support for project specification and replacement compatibility

Conclusion

DIN flange standards are a cornerstone of European and global industrial piping design, ensuring strength, reliability, and precision. Understanding DIN EN 1092-1, along with related standards, helps engineers select the right flange for their marine, offshore, or industrial systems.

At Aik Soon Hardware Pte Ltd, we stock and supply a full range of DIN, JIS, and ANSI flanges and valves to meet diverse engineering needs. Our commitment to quality assurance, technical knowledge, and prompt delivery has made us a trusted partner for shipyards, marine suppliers, and industrial projects across Singapore and beyond.
