Butterfly valves are essential flow-control devices widely used in industrial and marine applications due to their compact design and reliable performance. However, choosing the right actuator for your butterfly valve is equally critical to ensure smooth operation, durability, and efficiency. Two common actuator types are center gear actuators and worm gear actuators.

At Aik Soon Hardware Pte Ltd, Singapore’s trusted marine and industrial valve stockist, we help our customers navigate these choices for optimal system performance. Let’s explore how center gear and worm gear actuators compare, their advantages, limitations, and how to select the right one for your application.

Center Gear Actuators for Butterfly Valves

What Are Center Gear Actuators?

Center gear actuators use a gear mechanism aligned centrally with the valve shaft. This design provides direct, balanced torque to open or close the valve.

Pros of Center Gear Actuators

✅ Compact and Lightweight

• Smaller footprint ideal for space-constrained installations.

✅ Quick Operation

• Delivers faster opening and closing speeds compared to worm gears.

✅ Lower Torque Requirements

• Efficient torque transfer reduces manual effort or actuator power consumption.

✅ Cost-Effective

• Often more economical for small to medium-sized butterfly valves.

Cons of Center Gear Actuators

❌ Limited Torque Range

• May not handle very high torque requirements for larger valves.

❌ Less Mechanical Advantage

• Less mechanical reduction compared to worm gears, requiring more input force for larger valves.

Worm Gear Actuators for Butterfly Valves

What Are Worm Gear Actuators?

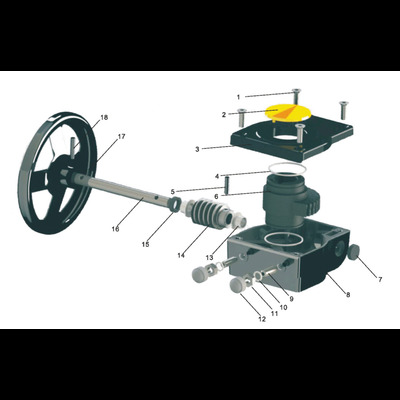

Worm gear actuators utilize a worm-and-wheel mechanism to operate the valve. Turning the worm shaft rotates the wheel, which in turn moves the valve disc.

Pros of Worm Gear Actuators

✅ High Torque Output

• Ideal for operating large butterfly valves with higher torque demands.

✅ Excellent Mechanical Advantage

• Worm gear reduction enables significant torque multiplication, reducing input force.

✅ Smooth and Precise Control

• Allows gradual, controlled operation—important for applications requiring fine adjustment.

✅ Self-Locking Feature

• Prevents back-driving, keeping the valve in position under pressure surges.

Cons of Worm Gear Actuators

❌ Larger and Heavier

• Requires more installation space.

❌ Slower Operation

• Typically slower opening/closing speed due to gear reduction.

❌ Higher Cost

• Generally more expensive than center gear actuators, especially for high-performance models.

When to Use Center Gear Actuators

• Compact installations where space is tight.

• Low to moderate torque requirements in pipelines.

• Frequent valve cycling due to faster actuation speed.

• Applications focused on cost-efficiency.

Typical examples:

• HVAC systems

• Light industrial process lines

• Water treatment systems with small-diameter pipes

When to Use Worm Gear Actuators

• Large-diameter butterfly valves requiring high torque.

• Systems where precise flow control is crucial.

• Applications exposed to pressure surges needing a self-locking mechanism.

• Marine and heavy industrial environments demanding robust operation.

Typical examples:

• Marine ballast systems

• Oil and gas pipelines

• Chemical processing plants

How to Select the Right Actuator for Your Butterfly Valve

When choosing between center gear and worm gear actuators, consider:

✅ Valve Size and Torque Requirements

• Larger valves with higher torque demands often need worm gear actuators.

✅ Space Constraints

• Center gear actuators suit confined spaces.

✅ Operation Frequency

• For frequent cycling, center gear’s faster action may be beneficial.

✅ Control Precision

• Worm gears excel where precise flow modulation is required.

✅ Budget

• Balance performance needs with cost considerations.

Consulting with valve experts like Aik Soon Hardware Pte Ltd ensures you select an actuator tailored to your specific process and budget.

Conclusion

Both center gear and worm gear actuators have distinct strengths for butterfly valve applications. Center gear actuators shine in compact, cost-sensitive setups, while worm gear actuators provide powerful torque and precision for demanding industrial and marine environments.

At Aik Soon Hardware Pte Ltd, we stock a wide range of butterfly valves and actuators to meet diverse operational needs. Contact our team today to discuss the ideal solution for your project, ensuring reliable performance and long-term value.
